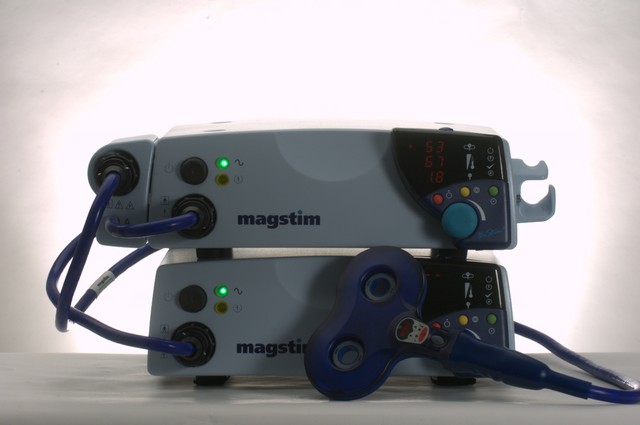

双脉冲磁刺激器(Magstim BiStim²)
Magstim BiStim² offers the potential to combine two Magstim 200² units to provide fully programmable paired pulse stimulation through a single stimulating coil. The ability to change pulse intervals and to control independently the power level of each Magstim 200² allows for precise sub- and supra-threshold conditioning and test pulses. This is invaluable for the investigation of Inter-Cortical Inhibition and Intra-Cortical Facilitation.
Two inter-pulse spacing options offer maximum controllability:
- 1ms - 999ms in 1ms increments
- 1.0ms - 99.9ms in 0.1ms increments
The inter-pulse spacing of the two pulses is adjustable using either stimulator user interface, remote control coil or via externa triggering software offering the user complete flexibility of use.
BiStim² has the added advantage of being able to summate the two single pulses provided by the Magstim stimulators to produce a single high power pulse equal to 113% of a single Magstim 200².
Specification
Output Type |
Monophasic Twin Pulse |
Maximum Power as % of Magstim 200² |
113%*† |
Maximum Frequency at Maximum Power |
0.25Hz |
Upper Frequency |
0.25Hz |
Maximum Frequency Burst |
1000Hz |
Minimum Pulse Interval |
1ms |
